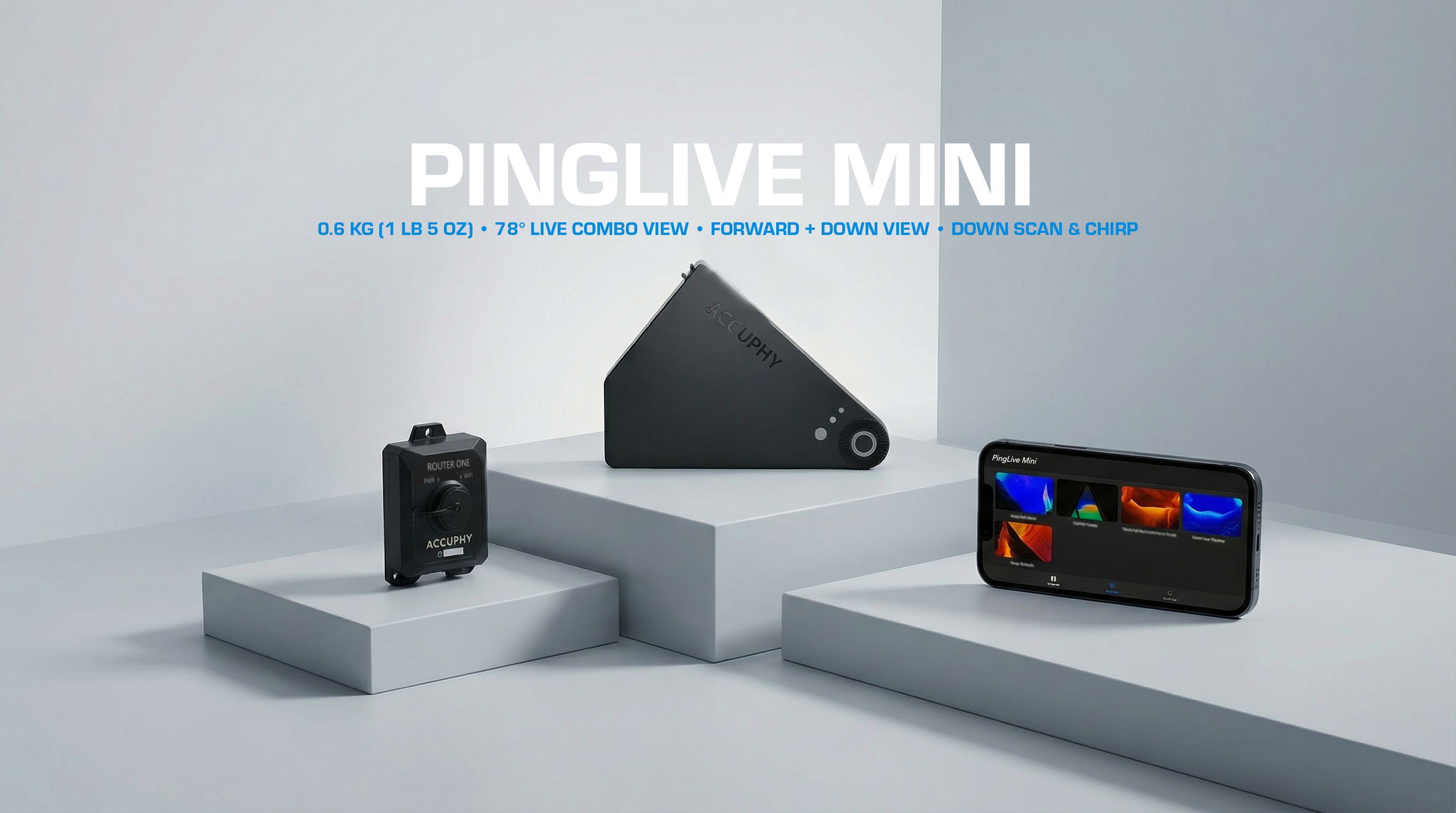

Accuphy PingLive Mini
Accuphy PingLive Mini is engineered for portability without sacrificing performance, the PingLive Mini Sonar delivers real-time underwater imaging via a wifi system directly to your cell phone or tablet in a compact, lightweight form via an App. Whether you’re casting from a kayak, a compact boat, or setting up on the ice, this high-performance sonar fits seamlessly into tight spaces—yet still packs the punch of much larger systems.
- iOS & Android: Control and view live sonar data with Accuphy Sonar app on compatible iOS and Android devices.

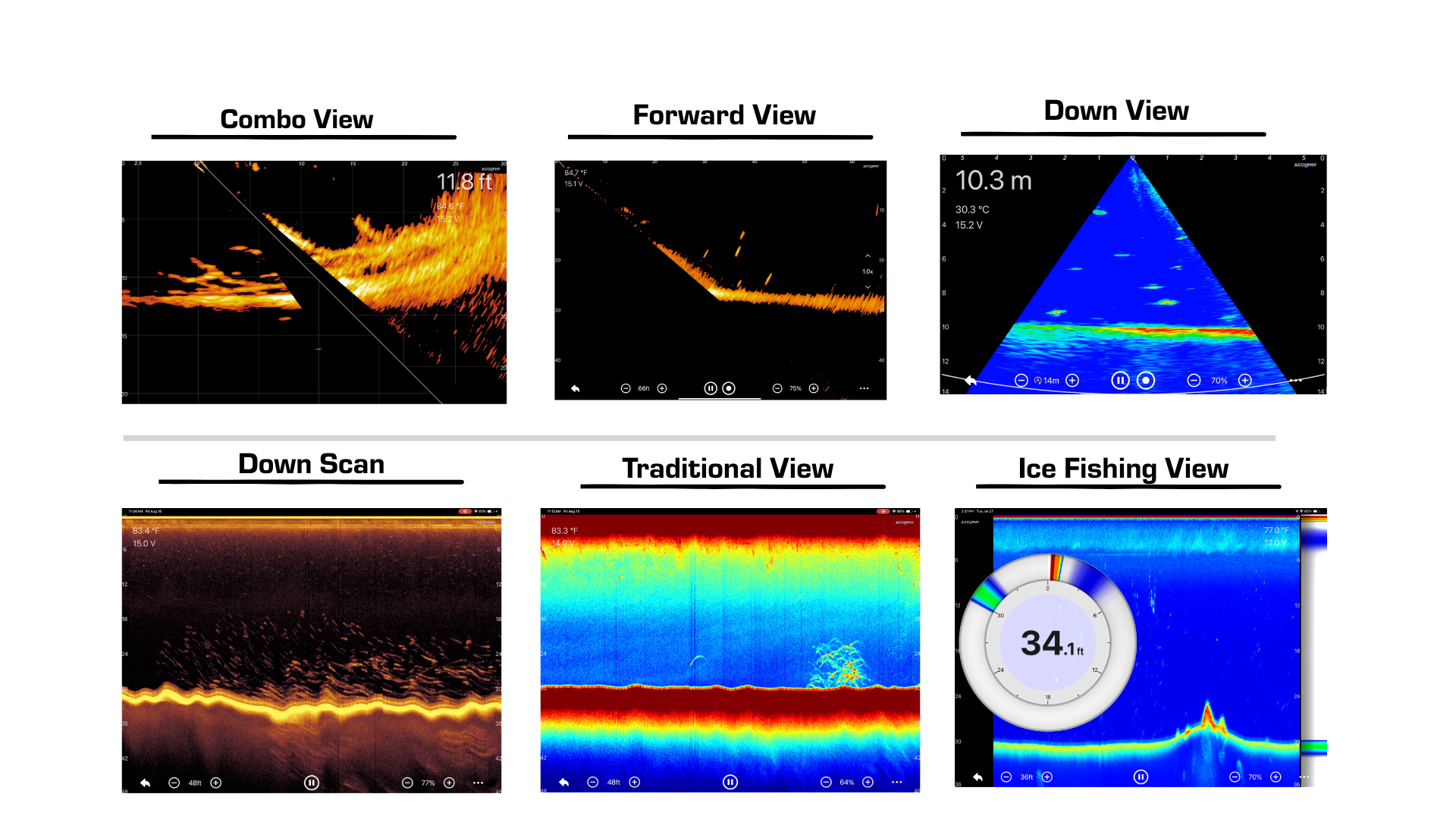

- Down View (Scan) + Traditional View (2D Chirp)
- Down View (scan) produces a photographic-like image of structures, vegetation, and fish directly beneath the boat. While Traditional View Produces a colored 2D display showing arches for fish and bottom hardness.
- Portability: At just 1.5 inches thick and 1.4 pounds, it’s designed for anglers fish all year round.
-
Simple Power & Connectivity: Operates on 10–18 VDC and supports both wired and optional wireless connections via the Accuphy WiFi Router
Whether you’re drop-shotting from a boat/ kayak or jigging through the ice, the PingLive Mini gives you the live sonar edge—compact, clear, and crafted for serious anglers.
Accuphy PingLive Mini Transducer Specs:
- Dimensions: 12.5 X 10 X 2.3cm, or 5 X 3.9 X 0.9in
- Weight: 0.6kg or 1lb 5 oz
- Transducer Beamwidth: 39° (Live forward & Live down)
- Transducer Cable Length: 6m, or 20ft
- Transducer Number of PINs: 8
- Temperature Range: 0°c to 40°c, or 32°f to 104°f
Accuphy PingLive Mini Parameters:
Electrical
- Power Input: 10-18VDC
- Power Usage: 12W typical, 25W max
Sonar Parameters
- Frequency: 450 – 1,100kHz
- Transmitting Power: 500W
- Maximum Range: 70.0m or 230ft (Freshwater)
Connection Options
- Wireless: Accuphy Wi-Fi Router (included)
Software
- iOS app (Accuphy Sonar)
- Android app (Accuphy Sonar)
Warranty Coverage:
Coverage Term: Accuphy products are warranted to the original retail customer to be free from defects in materials and workmanship for two (2) years from the date of purchase. During this period, Accuphy, at its sole option, will repair or replace defective components.
Commercial use: If a product is purchased for commercial use or is placed into commercial use at any time during the standard warranty period, the warranty term becomes one (1) year from the original retail purchase date.
Cost Responsibilities: Parts and labor are covered; the customer pays shipping cost to designated warehouse.
